Mitsubishi River System
8 Towers
2 Loading & retrieval stations
92 Storage Shelves, 4,400 lbs. capacity per shelf
Sheet capacity 60” x 120”
4 off-load tables, 11,000 lbs. capacity per table
Mitsubishi 3015 eX 50
Output Power: 4.5 KW
Sheet Capacity 60” x 120”
Mitsubishi 3015 LVP
Output Power: 4 KW
Sheet Capacity 60” x 120”
HK FS3015
Output power: 4 KW
Sheet Capacity 60” x 120”

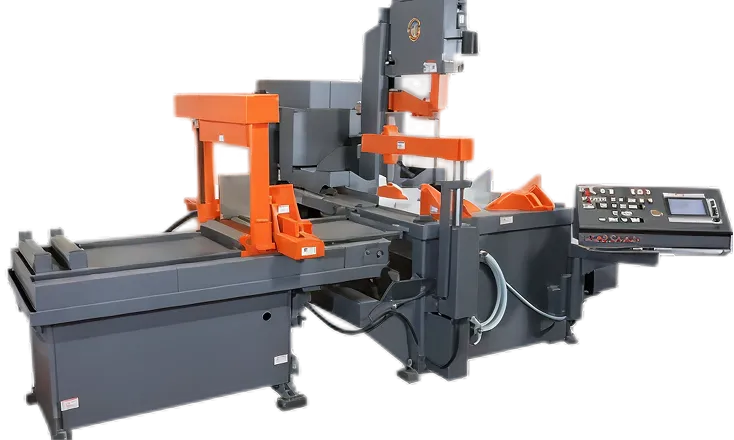

Hem VT120HA-60TS
Rectangular Capacity: 18" W x 24" H
Square Capacity: 18" (Square)
Round Capacity: 18" (Diameter)
Bar-feed: 48" (Stroke Hydraulic Motor - Multiple Index)
Blade Size: 16' 6" L x 1.25" H x .042"

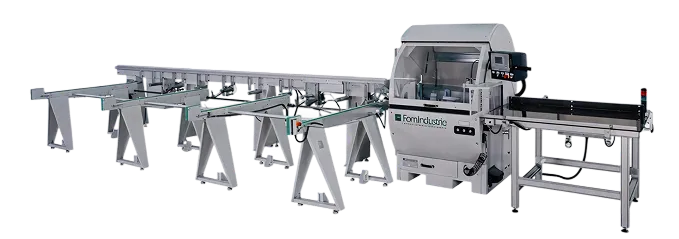

FOM Panda 550
Tungsten carbide Ø 550 mm saw blade
Horizontal accuracy +/- .004”
Cutting angle from 20° Rh to 20° Lh
Do-All Saw S-320 CNC
Rectangular Capacity: 12.5" W x11.75" H
Square Capacity: 12" (Square)
Round Capacity: 11.75" (Diameter)
BLM E-TURN40B
+/-0.05 deg
Multi-radius capability
8 tool set capacity
Round tube: 1.65”
Bending radius: 6.5”

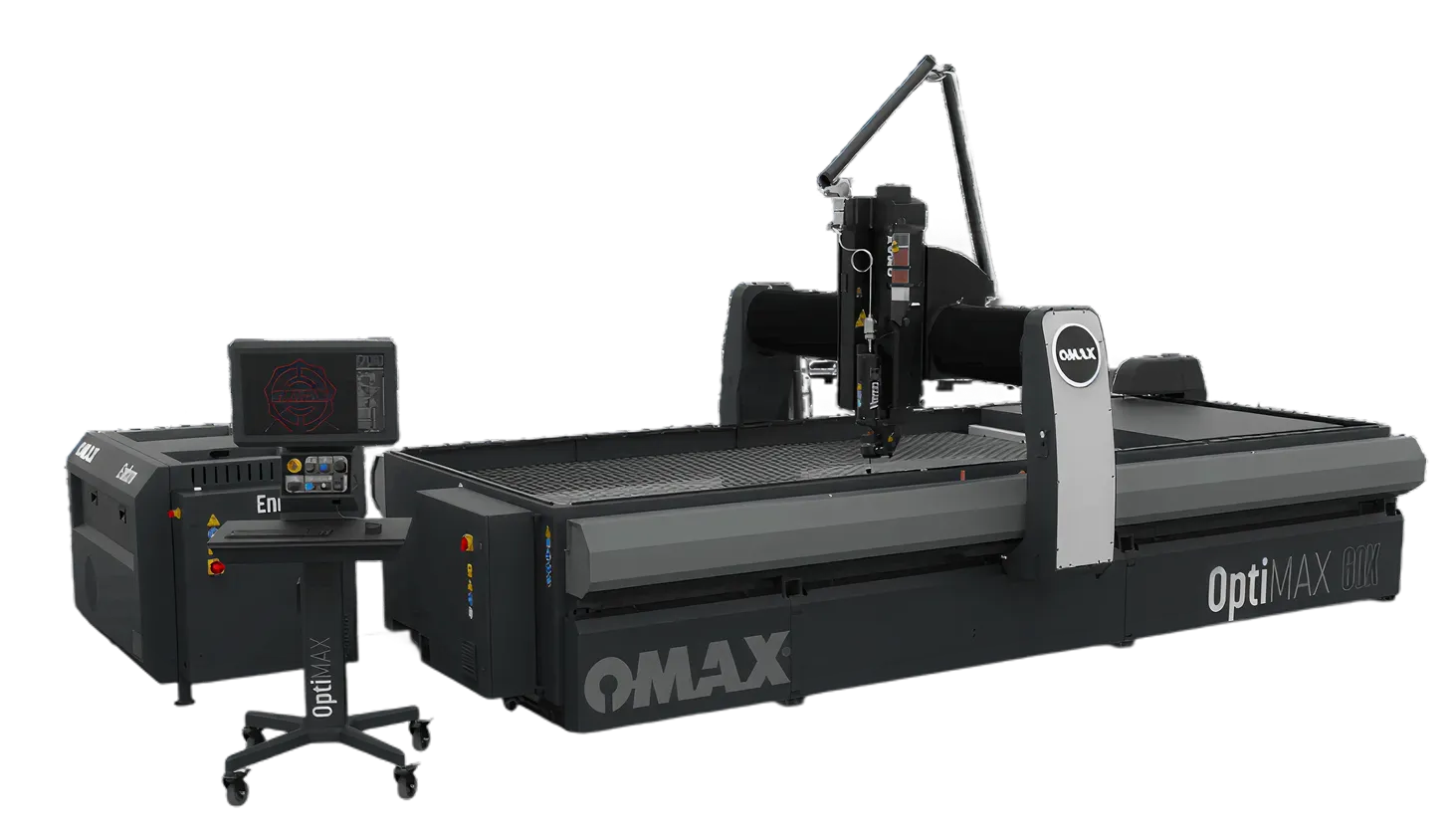

Omax OptiMAX 80X Jet Machining Center
+/- .001” linear position accuracy and repeatability of +/- .001”
Z-Axis Travel up to 12”
Tilt-jet capability
Cutting pressure of 60,000 psi
80” x 160” in X-Y cutting travel
Omax 160X Jet Machining Center
+/- .001” linear position accuracy and repeatability of +/- .001”
Z-Axis travel up to 8”
13’ x 46’ in X-Y cutting travel
Tilt-jet capability
Cutting pressure of 60,000psi
Dual bridge
Tilt-jet capable
Drill option installed on bridge 2
Vipros 357 Queen
Nominal rated capacity: 33 Tons
Depth of throat: 50"
X-Axis travel: 72"
Y-Axis travel: 50"
Max. Material Thickness: 1/4" (Mild Steel)
Max. Hole Diameter: 4.5"
50” x 144” max sheet
Taricco Autoclave
Size: 30’ x 10’ x 8’ 10”
Max Allowable Working Pressure (Vessel Rating) 190 psi at 500f
Shell thickness 0.75"
Max operating temp approximately 400f (limited by heaters)
Max operating pressure approx. 150 psi
Cooling Tower System RSD RSS-144-88-C-SS
Knife Cutter
Lectra VT-TT-Q25-72
Effective cutting width 72" (1.83 m)
Ply Height Capacity Up to 1" (25 mm / 2.5 cm)
Material Types Fabrics, composites, upholstery, technical textiles
Approx. Machine Dimensions 4800 × 2500 × 1600 mm
Empire Manufacturing
Max temperature 400F
Size: 12’ x 6’9” x 7’5”
Trumpf Trubend 5230
253 Ton
14' max length
6 Axis Back Gauge

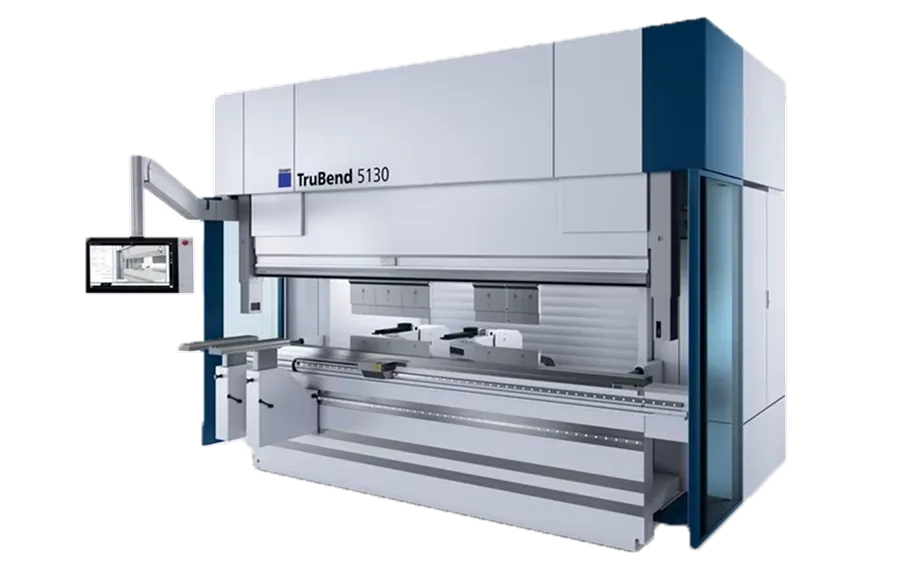

Trumpf Trubend 5130
143 Ton
10' max length
6 Axis Back Gauge
Amada HDS 1303NT
130 Ton
10' max length
6 Axis Back Gauge
Amada HG 8025
80 Ton
8' max length
6 Axis Back Gauge
Bystronic Xpert 250
250 Ton
13' max length
7 Axis Back Gauge
Bystronic Xpert 40
44 Ton
4' max length
6 Axis Back Gauge

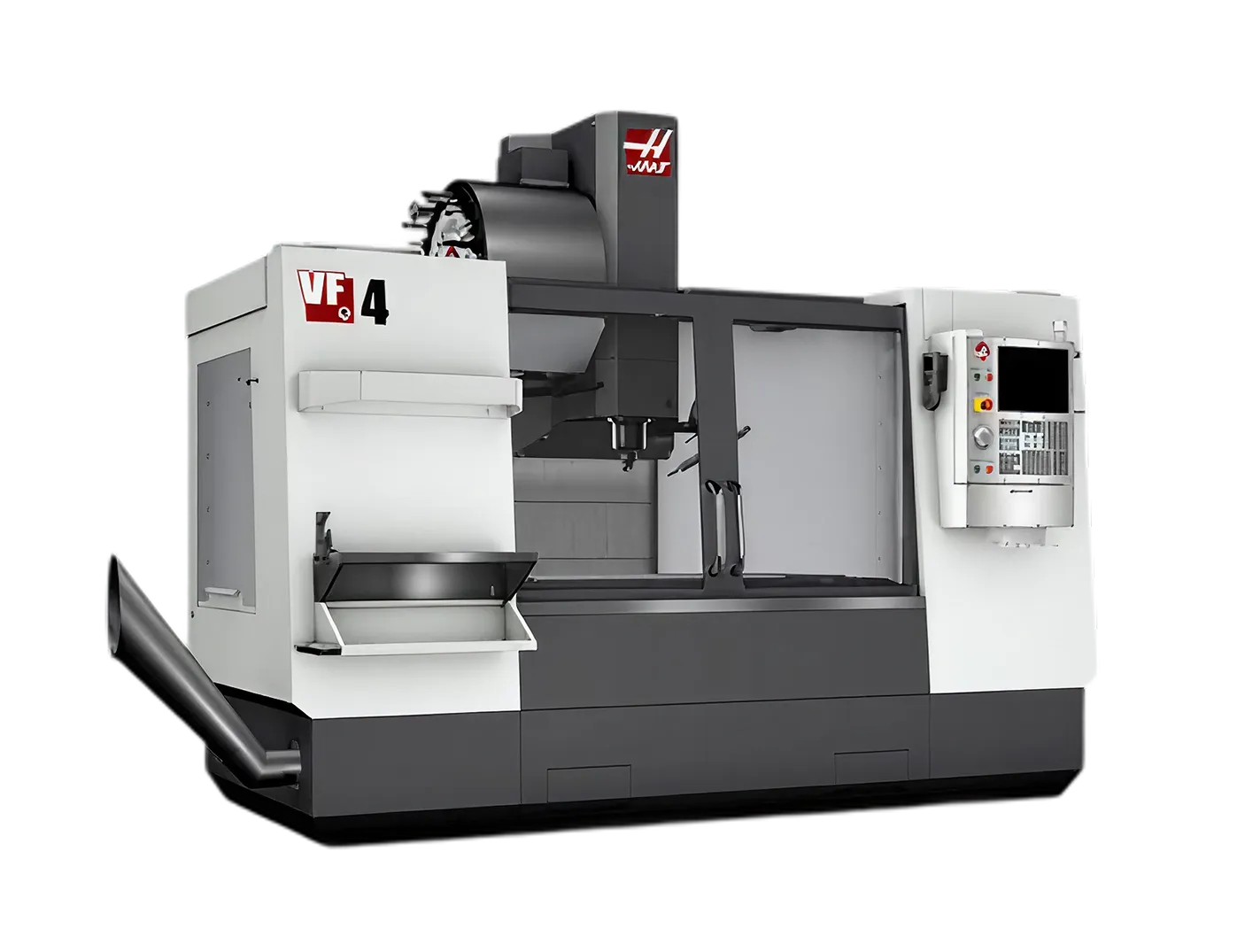

Haas VF-4 (3 Machines)
Vertical Mill
HP 30
CAT40 Tooling
8,000 RPM
3,500 lbs max
50” x 20” x 20” workspace size
40 tool stations

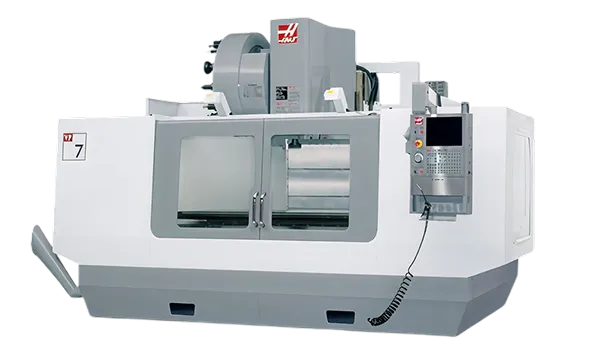

Haas VF-7
Vertical Mill
HP 30
CAT40 Tooling
8,000 RPM
3,500 lbs max
50” x 20” x 20” workspace size
40 tool stations

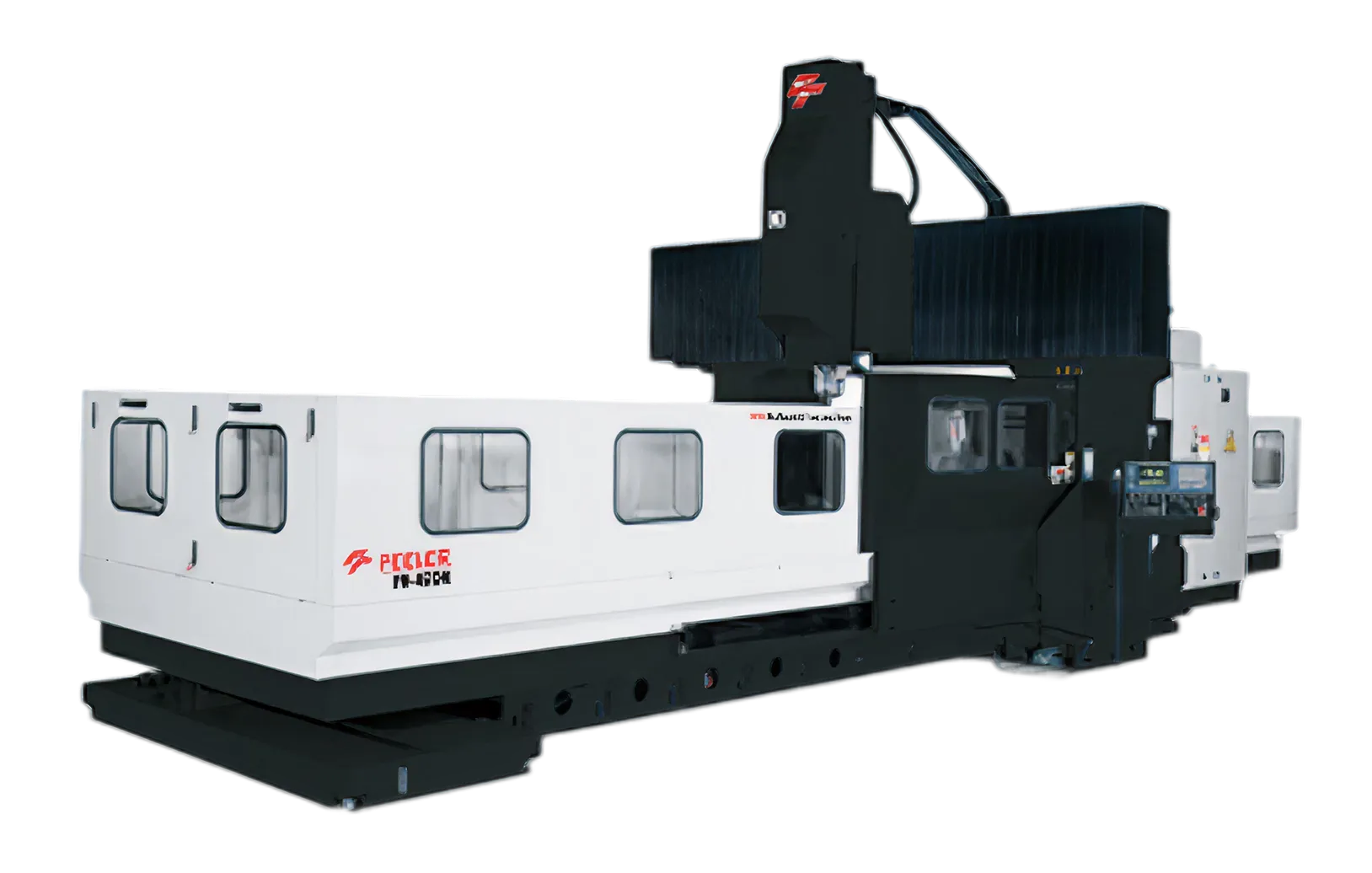

Feeler FV-3224
Bridge Mill
HP 35
CAT40 Tooling
10,000 RPM
24,000 lbs max
118” x 87” workspace size
60 tool stations
Haas VF-9 (2 Machines)
Vertical Mill
HP 30
CAT40 and CAT50 Tooling
10,000 RPM
4,000 lbs max
84” x 36” workspace size
30 tool stations
Haas VF-10
Vertical Mill
HP 30
CAT40 Tooling
8,000 RPM
4,000 lbs max
120” x 32” x 34” workspace size
50 tool stations
Haas VF-11
Vertical Mill
HP 30
CAT50 Tooling
7,500 RPM
4,000 lbs max
120” x 40” x 30” workspace size
30 tool stations
Feeler FV-2218
Bridge Mill
HP 35
CAT40 Tooling
10,000 RPM
15,000 lbs max
79” x 67” workspace size
60 tool stations
Haas VF-2 SSYT
Vertical Mill
HP 30
CAT40 Tooling
12,000 RPM
3,500 lbs max
30” x 20” x 20” workspace size
30 tool stations
VisionWide NF-3230
Double Column Bridge Mill
HP 25
CAT50 Tooling
12,000 RPM
13,000 lbs max
119” x 96" workspace size
40 tool stations
Right angle head attachments

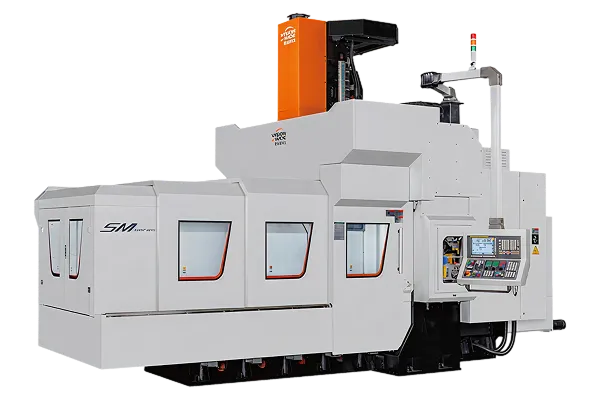

VisionWide SM-2622
Double Column Bridge Mil
HP 25
CAT50 Tooling
10,000 RPM
12,000 lbs max
110” x 82” workspace size
60 tool stations

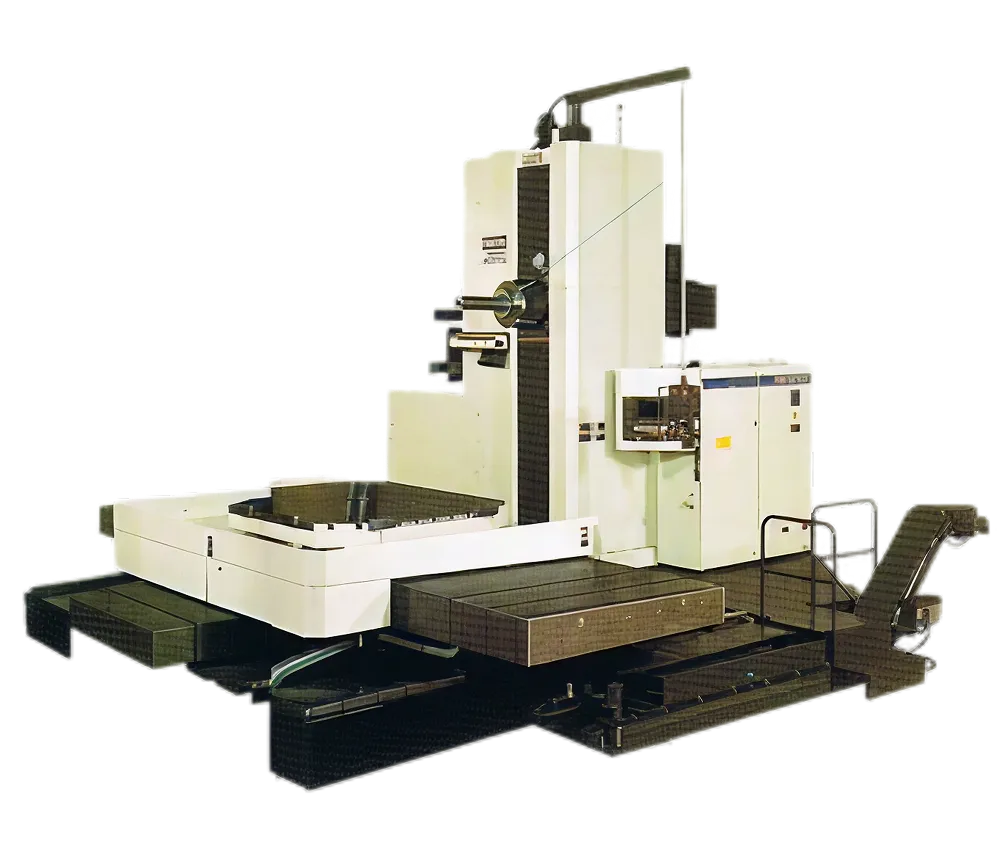

Toshiba BTD-13F.R22
Boring Bar
HP 40
CAT50 Tooling
7,500 RPM
22,000 lbs max
70” x 86” workspace size
60 tool stations

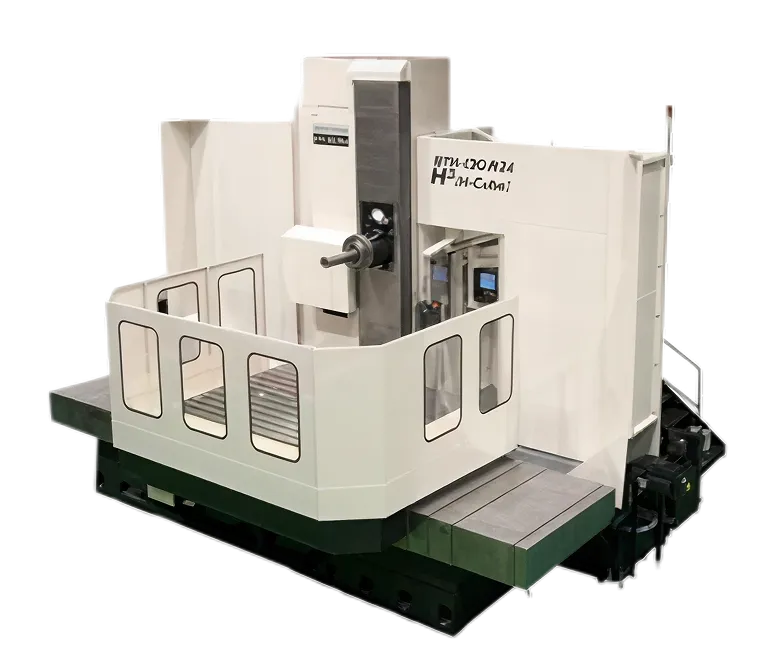

Toshiba BTH-130.R24
Boring Bar
HP 40
CAT50 Tooling
7,500 RPM
44,000 lbs max
118” x 90”
90 tool stations
Haas ST-15Y Turning Center
HP 20
8.3” Chuck size
16.5” Swing
11” Cutting diameter
7.88” x 2.0” x16.0” workspace size
12 tool stations
TIG Welding
(32) Miller Dynasty 350 and 450
Mig Welding
(5) Lincoln Power Mig 500
(19) Lincoln Power Mig 350
(15) Millermatic 350P
(2) Lincoln Power Mig 300
(3) Miller Pipeworx 400
(6) Miller Deltaweld 500
(6) Miller XMT 350
Robotic Welding
(2) Fronius TPS 400i Robotic Welder
37” x 58.5”
Stud Welding
Spot Welding
Laser Welding
UR20 Cobot Welder
.webp)
RTT Pressurized Side Down-Draft Paint Booths
(2) 20’ x 14’ x 20’
Wash Bay
20’ x 14’ x 20’

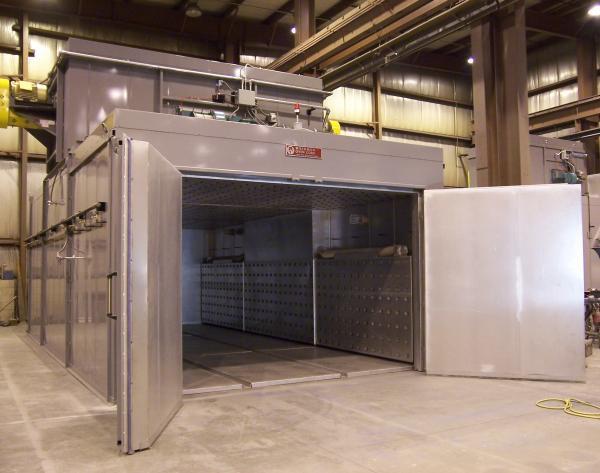

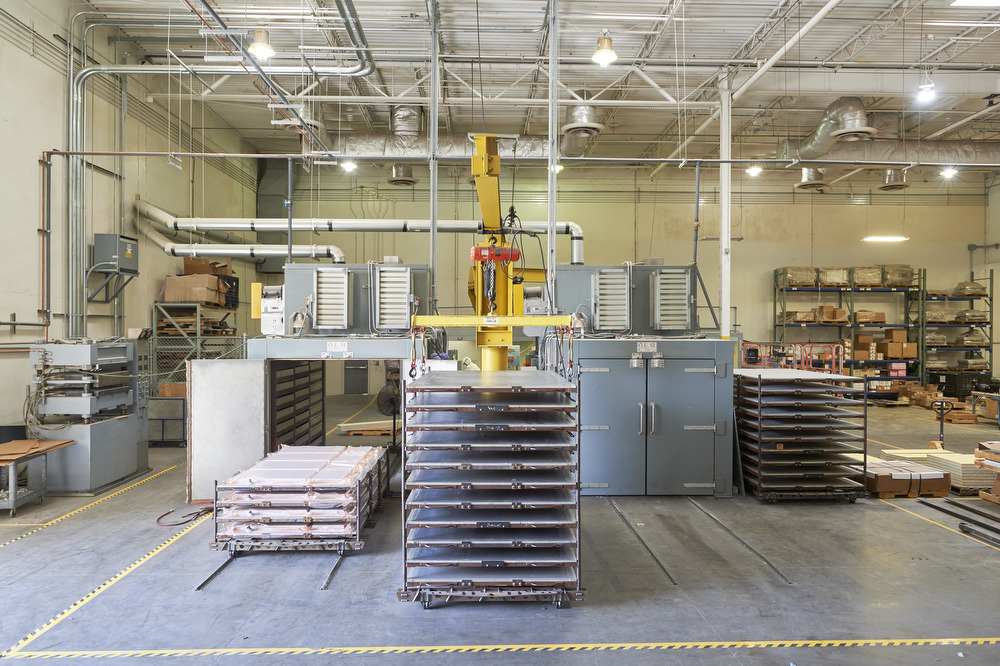

Cure Ovens
(2) 20’ x 14’ x 20’
Iron Phosphate Booth
12’ x 10’ x 12’
Hexagon Absolute Arm (5)
6-axis
13’ axis length
Probing accuracy +/- .001-.003
Trackscan Sharp-S
3-D Scanning
Reverse engineering capability
Accuracy +/-.00173"
Precision measurement window of 135m3
Keyance IM-8030T Image System
360 degree multi surface measurement
Accuracy +/-.000079"
12” x 12” x 12”
Keyance WM-3500 CMM System
360 degree multi surface measurement
Portable
Measurement range up 49’
Accuracy +/-.0039"
Mitutoyo 9168 Crysta Apex CMM
35” x 63” x 31”
+/- .000004”
Faro Quantum Arm
6-axis
13’ axis length
Probing accuracy +/- .001-.003
Faro Quantum Arm (2)
6-axis
8’ axis length
Probing accuracy +/- .001-.003
Faro Fusion Arm
6-axis
5’ axis length
Probing accuracy +/- .001-.002
Faro Tracer (2)
Standard CAD-to-part laser projection
Virtual templating
Ply placement guidance
Assembly positioning
Faro Tracker
360-degree multi-surface measurement
Portable
Measurement range up 100’
Accuracy +/-.002"
Hexagon Accurex Tube Scanning System
Size: 23” x 43” x 33”
8-camera array
Max tube length up to 1,000 mm
Max tub diameter up to 125 mm
Non-contact optical 3D inspection
Overhead Cranes
(10) 10-ton lifting capacity 50’ x 400’
(5) 20-ton lifting capacity 50’ x 400’
(7) 3-ton lifting capacity 50’ x 400’
15-ton Bridge
15-ton Dual Bridge
2-ton Bridge
